RCA, XLR, DIN, Headphone, DC & BNC Connectors

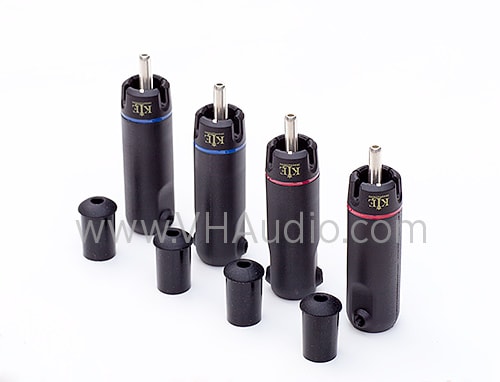

The new KLE Harmony series of RCA connectors gives audiophiles yet another choice in low-mass RCA connectors. This new design by Keith Louis Eichmann (KLE) comes in three flavors. The first version called the Copper Harmony is a pure copper base version, with silver plating for both the signal and ground/return pins.

The second version VH Audio stocks is the PURE Harmony. This version claims to achieve an IACS of 106% for BOTH the signal pin, as well as the ground/return pins.

The third version VH Audio stocks is the ABSOLUTE Harmony, which is similar to the Pure Harmony, but has an IACS that is claimed to have an IACS conductivity greater than 106%.

The newest, top-of-the-line version is the PERFECT Harmony RCA connector. This RCA construction uses proprietary mathematical modeling for the Perfect Harmony's ground to signal pin relationship, parameters, and determines the proprietary metallurgical processes that are used. The conductive pins incorporate highly conductive materials, such as copper and silver metallurgical layering processes as determined by KLEI's proprietary mathematical modeling.

A nice addition to these connectors is the inclusion of a soft, pliable rubber grommet with an ID of about .14" that can 'stretch' around smaller O.D. cables. Without the rubber grommet, the I.D. of the cable entry portion of the barrel is about .385". Two grub screws also help secure this connector to your cables, for additional peace-of-mind, when it comes to strain relief, and protecting against breakage.

Yet another great choice for fine wire, low mass DIY RCA interconnects like the VenHaus DIY Silver recipe.

Each package contains 2 pairs of RCA plugs (4 total plugs). >> Rubber grommets for rear of RCA are no longer included - they are now offered separately <<

> KLEI Harmony RCA Product Brochure (pdf)<

> More details <

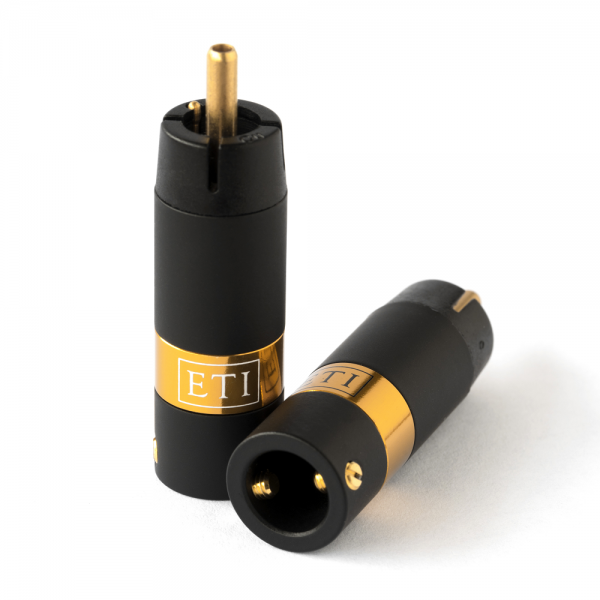

The new ETI Research LINK RCA Connectors are based upon the original Bullet Plug RCA from ETI Research, but are now improved with new benefits.

For the standard LINK RCA: The hollow central signal pin is now made from pure, unalloyed copper (vs Tellurium Copper) for even better conductivity. The ground/return conductor pin is constructed with tellurium copper, to maintain strength. Both metal components are gold-plated for excellent conductvity, and to keep corrosion-free. Also included in the new LINK design is a metal housing with TWO grub screws that better secure the connector's strain relief to the outer jacket of your RCA cable.

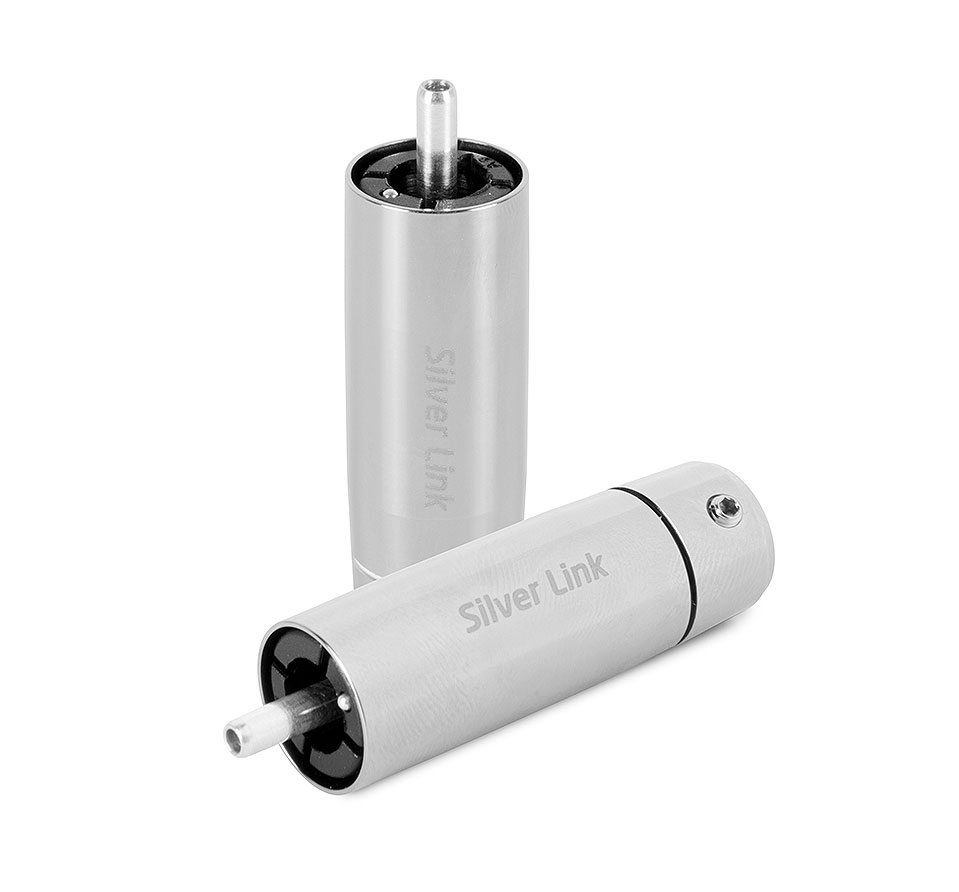

For the SILVER LINK RCA: The hollow central signal pin is still made from solid, pure, unalloyed silver (just like the Silver Bullet) for the best conductivity. The ground/return conductor pin is also constructed with pure, solid silver. Also included in the new LINK design is a metal housing with TWO grub screws that better secure the connector's strain relief to the outer jacket of your RCA cable. It also imrpoves upon the original Bullet plug by extending the outer portion of the housing towards the tip of the RCA, essentially providing a shield for the RCA plug's entire internal wiring.

Each 4-pk contains 2 pairs of LINK RCA Plugs (4 total plugs), or you may optionally order a 2-pk (single pair). Please specify what color code you want for the pair, in the 'special instructions' section of the online checkout.

> More details for ETI Research LINK RCA <

The LINK RCA plugs work superbly with DIY IC's, like the VenHaus DIY Silver interconnect recipe. Each package contains 2 pairs of RCA's (4 total plugs).

The WBT-0102 and WBT-0152 Nextgen RCA plug utilizes conductor material made of pure copper, and then direct gold plated. The silver version is made of pure silver. Fits cable up to 9.1 mm dia. (WBT-0102 series) or 11.3 mm (WBT-0152 series). Sold in a kit of 4, and includes WBT solder and Torx key.

The Nextgen RCA plug has gone through a few revisions since its introduction, and the latest versions offered (WBT-0102 and WBT-0152) use metal bodies. Cost is slightly more than the WBT-0110, but the added rigidity and robustness of the connection is well worth the few extra $$, IMHO.

The WBT-0102 will accomodate cable diameters up to 9mm, while the WBT-0152 will accomodate cable diameters from 9.1 to 11.3 mm. The WBT-0152 is slightly longer than the WBT-0102 (55mm vs. 51 mm), and both have black bodies.

The WBT-0114 Nextgen RCA Plugs is constructed of Ultramid® and available in nine different colors for multi-channel identification. The barrel is made of brass and finished in a matte black galvanized finish. The contact elements are made of high-purity copper, second only to silver, in order to ensure optimum signal transmission. Conductor metal is nickel free and gold plated to protect the surface from oxidation and to ensure contact quality.

> More details for WBT-0114 RCA <

> More details for Nextgen RCA plugs <

The Furutech, FP-106 and FP-120 filament style locking RCA's are unique designs, and sound incredible. The rhodium or gold platings over Phosphor bronze (central pin), Flouropolymer dielectric, brass body/locking collet and precision machining are top rate. Both the FP-106 and FP-120 are Rhodium plated. The FP-101 is gold plated, and requires soldering. Will accomodate cables up to 9.3 mm in diameter. The Furutech FP-106 uses small set screws for termination, so no soldering is necessary. The FP-120 uses conventional soldered connections. Please click here for more information > More details <

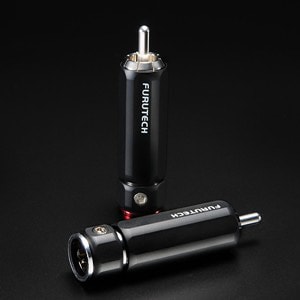

The Furutech FP-108R is a new solderless, locking RCA that uses Furutech's (Alpha) OCC rhodium-plated center conductor, a Copper alloy rhodium-plated body, Copper alloy black-painted locking housing, and Flouropolymer insulation. Solderless cable connection is achieved through the use of set screws. Will acommodate cable diameters up to 9.3mm max. Dimensions: 13.8mm diameter x 54mm overall length. Please click here for more information > More details <

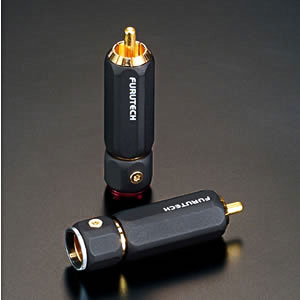

The Furutech FP-110 is a locking RCA connector that requires soldering, and uses a gold-plated solid OCC Copper central pin. It also employs a Flouropolymer dielectric, and copper alloy body and locking collet. Accomodates cable diameters up to 9.3 mm. Dimensions: 13.8 mm Dia. X 54.4mm overall length. Please click here for more information > More details <

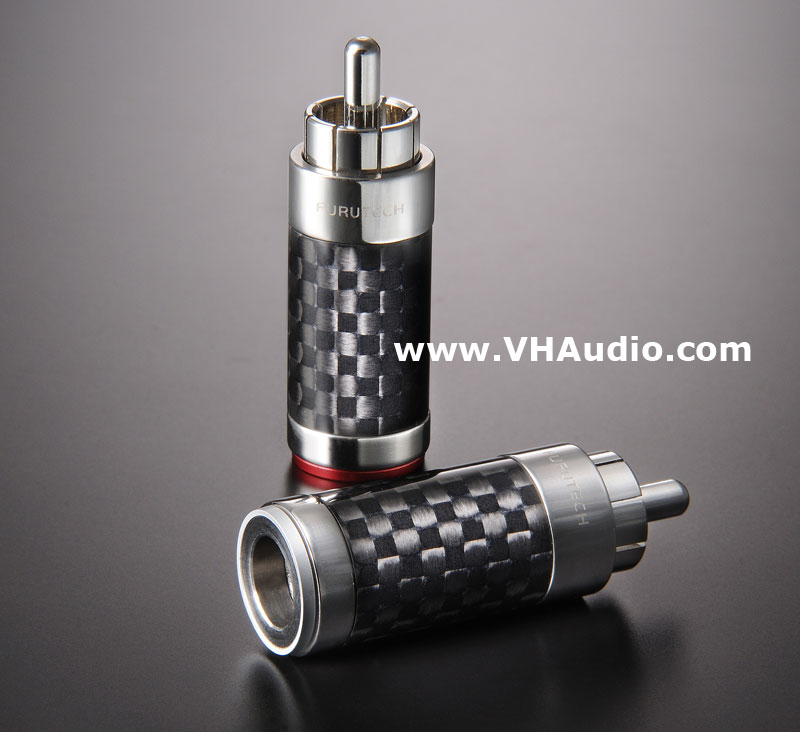

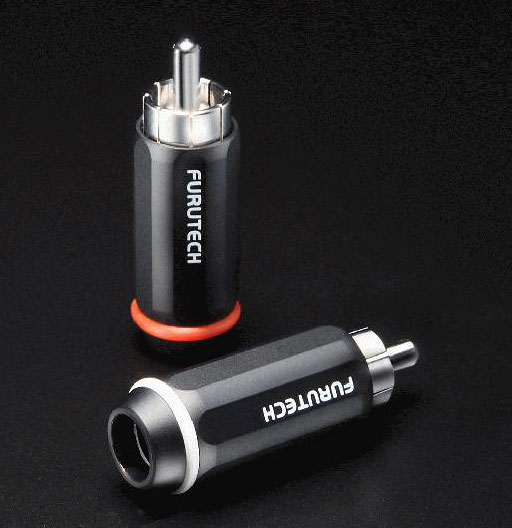

The Furutech FP-126R, CF-126R and FP-126G require soldering and use either a Rhodium or Gold plated (Alpha) OCC Conductor center pin, Copper alloy body, and Flouropolymer insulation. Specified for cable diameters up to 7.3mm. Dimensions: 12.6mm diameter x 39.3mm overall length. Please click here for more information > More details <

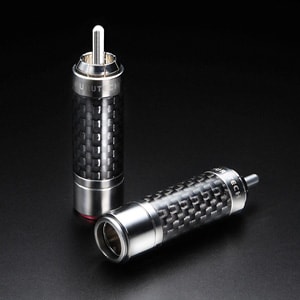

The Furutech CF-102 is another Furutech innovation, and may very well be considered to be among the best solder-free RCA's on the market today. Some features include: (Alpha) OCC copper rhodium-plated center conductor, (Alpha) copper alloy rhodium-plated body, Carbon fiber and nonmagnetic stainless steel housing, Copper alloy connector body, and a specially developed Copper alloy set screw, and solder-free construction (no soldering is necessary). Specified for cable diameters max. 9.3mm. Dimensions: 14.0mm diameter x 54.0mm overall length. Other companies may be pricing these connectors as a set of TWO PIECES. Our price is for a set of 4 connectors. To order two piece, simply order a qty of ".5". Please click here for more information > More details <

The Furutech FT-111 series, available in gold or rhodium platings, are Furutech's newest 'low-mass' RCA offering that uses Furutech's pure copper alpha conductor material for both the signal pin, as well as the return/ground pin. The FT-11 series uses set screw terminations, so no need to fire-up the soldering iron! The housing is non-magnetic stainless steel for an attractive look, and additional shielding. Specified for cable diameters up to 10.0 mm. Please click here for more information > More details <

Brand new is the Furutech CF-102 NCF top-of-the-line RCA connector. This is the first Furutech high performance signal connector to feature Nano Crystal Formula (NCF). This material is the cumulative result of Furutech's 30 plus year effort to eliminate electrical and mechanical resonance from signal and power transmission in high performance audio and video applications. Offering a dramatic reduction in noise, improved imaging, and focus, and improved soundstaging, the CF-102 NCF will take your listening enjoyment to the next level. The CF-102 NCF features a low mass (Alpha) OCC Rhodium-plated single-piece construction conductor pin injected through its core with Furutech's ultimate anti-static and resonance damping material – NCF. Delivering improvements in the depth and focus of the sound stage, harmonics, and tonal balance. Low frequencies are cleaner, with a greater sense of definition made possible by a lowered noise floor Other features: (Alpha) Copper Alloy Rhodium-plated Body Nonmagnetic stainless steel and silver-plated carbon fiber housing. The best of damping and insulation materials improve frequency extension and tonal balance. Conductor wire fixed by set screw. Specified for cable diameters max. 11.0mm. > MORE DETAILS <

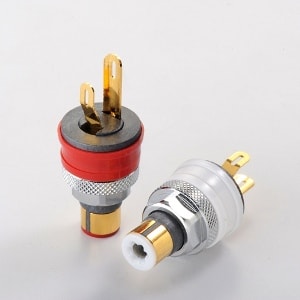

Furutech has just introduced the new FT-903 series of RCA sockets, available in Gold or Rhodium plated versions. This low-mass design uses pure copper conductor material and then plated with either gold or rhodium. The body and locking nut is made from a liquid crystal polymer resin, that has superior dampening properties to coventional. The Furutech FT-903 RCA sockets might offer the best bang-for-the-buck of any low-mass RCA socket on the market.

Click for FT-903 panel cut-out size (.pdf)

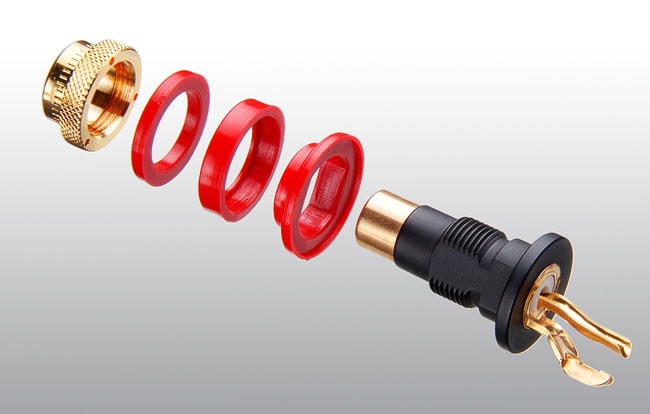

The Furutech FP-901G and FP-901R RCA sockets are top-notch, and deserve to be considered among the best female RCA sockets on the market. Features include: Positive/Hot Center Pin milled from a single piece of pure copper (with phosphor bronze locking ring); The ground/Return conductor is milled from a single piece of pure copper; non-magnetic 24k gold-plated materials; Eutectic brass housing (painted black) and 24k gold-plated nut cap; Mounting Materials are made of nylon (red or white - outer) and PTFE Flouropolymer (white - inner) insulation; Mounting insulation accommodates chassis panels of any thickness; Connection Type is made for soldering. The Furutech FP-901 is Available with either GOLD or RHODIUM plating.

Click for FP-901 panel cut-out size (.pdf)  |  Click for exploded view

The WBT brand has become synonomous with "the best", and perhaps "expensive"- but we all know you get what you pay for... When looking for quality RCA sockets, it doesn't take long to realize that WBT is as good as it gets. People spend a great deal of money on cables and interconnects, but forget the other half of this equation is the socket you connect your cables to.

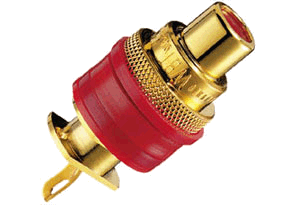

The WBT-0201 Topline RCA Socket utilizes high copper content and 24k WBT supra-gold plating. The signal wire socket utilizes a dual prism spring loaded feature to assure secure contact. It also uses a Flouropolymer dielectric. Includes mounting insulation to accommodate panel thicknesses from 0.1-4.2mm. Tightens from outside of chassis using included mounting nut. Kit includes 1 red and 1 white color-coded socket, and a length of WBT 4% silver solder.

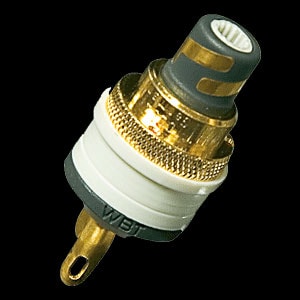

The WBT-0210 Cu NextGen RCA socket uses conductor material made of pure copper, and are direct gold or plated. The signal pin hole is a spring loaded WBT double prism contact, while the ground/return portion utilizes a patented double-wave contact. The socket also uses a Flouropolymer dielectric with torsion proof mounting. Tightens from outside using the included three-hole counter nut. Transmission bandwidth is 1 Ghz, and the socket has a characteristic impedence of 75 ohms, meaning this is an ideal socket for digital components, as well as analog components.

The WBT-0210 Ag NextGen RCA socket utilizes conductor material made of pure, solid silver. The signal pin hole is a spring loaded WBT double prism contact, while the ground/return portion utilizes a patented double-wave contact. The socket also uses a Flouropolymer dielectric with torsion proof mounting. Tightens from outside using the included three-hole counter nut. Transmission bandwidth is 1 Ghz, and the socket has a characteristic impedence of 75 ohms, meaning this is an ideal socket for digital components, as well as analog components.

The new FR-TC07 female RCAS socket performs at the same trailblazing level as the legendary ETI Research Phonopod, but with some added benefits. High fidelity performance has been achieved with the ETI Research without giving into compromise. The ETI FR-TC07 RCA socket has an open and airy, coherent musical presentation that doesn't pull any 'meat off the bone', in doing do. The design has low self-inductance, is optimized to eliminate RF reflections, easy installation, and unfailing durability. Frequency bandwidth is also unparalleled. Low mass and 75 ohm impedance, which makes suitable for SPDIF inputs/outputs! The contact point on the FR-TC07 is 1100 Copper with a gold-plated Tellurium Copper connection blade. The Return and Connection Blade is Gold Plated Tellurium Copper which is needed for the durability of years of reliability.

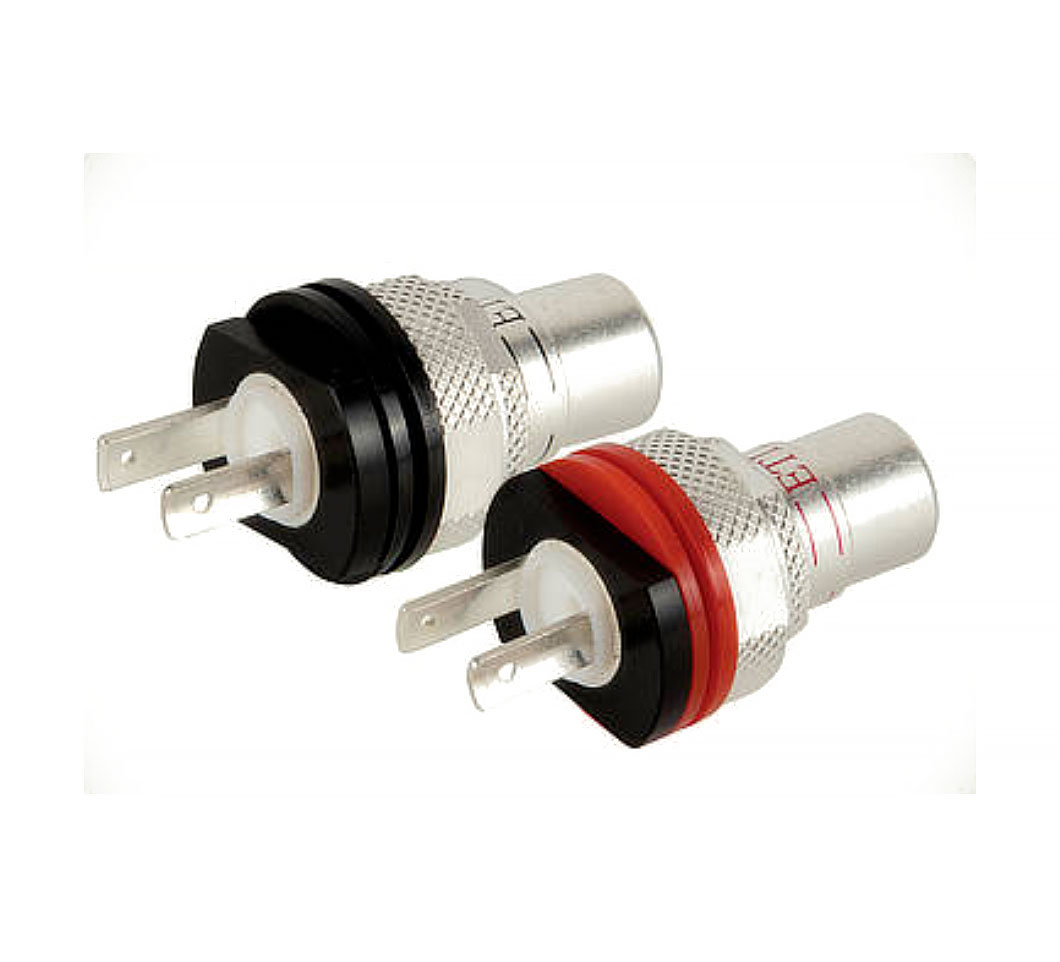

The FS-08 is essentially a SILVER version of the FR-TC07, with The contact point on the FS-08 is solid Silver with a silver-plated Tellurium Copper connection Blade. The Return and Connection Blade is Silver Plated Tellurium Copper which is needed for the durability of years of reliability. Priced per pair

Offered in PAIRS with RED and WHITE color code (1 piece each).

> More details <

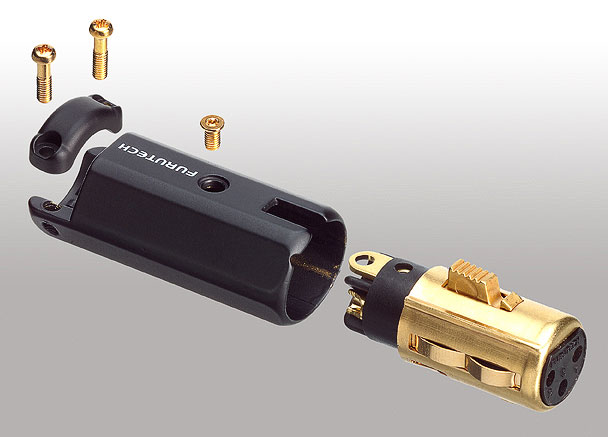

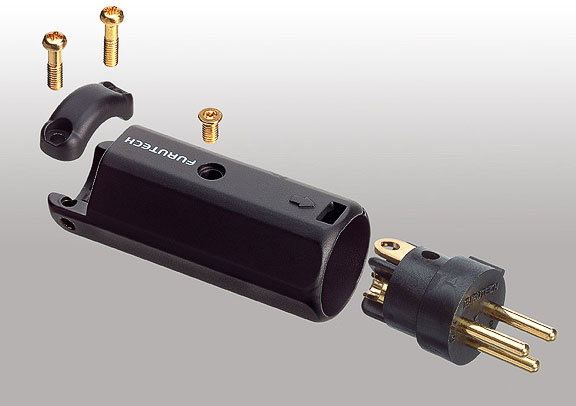

Furutech FP-601M and FP-602F RHODIUM or GOLD-plated XLR plugs are among the best XLR plugs available on the market. This plug has Rhodium plating over phosphor bronze- a material that contains about 50% more copper than typical brass. Flouropolymer insulation is used as the insulator for the Furutech FP-601M and FP-602F, for extremely low dielectric constant, and the shell is non-magnetic solid brass. The entire plug has been processed with Furutech's proprietary demagnetization and cryogenic treatment process, meaning exceptional sound quality and better durability over typical XLR connectors. This is a great XLR connector for balanced analog and AES/EBU digital applications that require 110 ohm impedance. The Furutech FP-601M and FP-602F accomodates cable diameters from 6.4mm to 13.0mm.

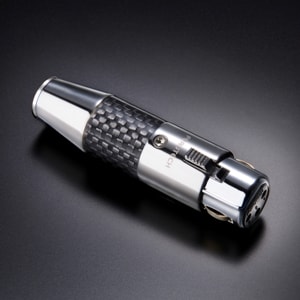

The Furutech CF-601M and CF-602F previously only available to high-end OEM's. The Furutech CF-601M and CF-602F XLR connectors have rhodium-plated beryllium copper and phosphor bronze conductors, and feature a carbon fiber and non-magnetic stainless steel housing. The insulator is PVDF Flouropolymer, and the termination method is solder only. Specified for cable diameters up to 10.0mm. Dimensions: 18.6mm diameter x 77.4mm overall length.

The NEW Furutech CF-601M NCF and CF-602F NCF XLR connectors are Furutech's newest flagship design. The Furutech CF-601M NCF and CF-602F NCF XLR connectors have rhodium-plated pure copper conductors, and feature a carbon fiber and non-magnetic stainless steel housing, along with Furutech's NCF material. The insulator is NCF Liquid Crystal Polymer Resin, and the termination method is set screw. Specified for cable diameters up to 10.0mm, and indivdiual conductor diamters of 2.1mm. Dimensions: 18.6mm diameter x 64.6 overall length.

> Click here for more info and dimensions for the CF-601M NCF <

> Click here for more info and dimensions for the CF-602F NCF <

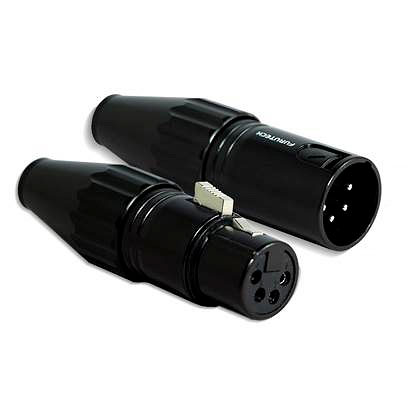

The NEW 4-pin Furutech FP-705M and FP-706F XLR connectors are impeccably finished, beautiful sounding connectors that feature Furutech's (Alpha) copper alloy conductors set in a special PBT / fiberglass resin insulation, to ensure minimal impedance and withstand high soldering temperatures. The Furutech FP-705M and FP-706F are finished with black painted housings. The main conductors are Rhodium-plated solid (Alpha) Copper alloy. Insulation is PBT and fiberglass Resin, while the housing is a non-magnetic Zinc/Al alloy and Copper alloy (End shell). Connection type is: Solder only. Specified for cable diameters up to 9mm. Dimensions: FP-705M: 18.8mm +/- 0.1mm diameter x 63.2mm +/- 0.1mm overall length. FP-706F: 19.5mm +/- 0.1mm diameter x 64.2mm +/- 0.1mm overall length

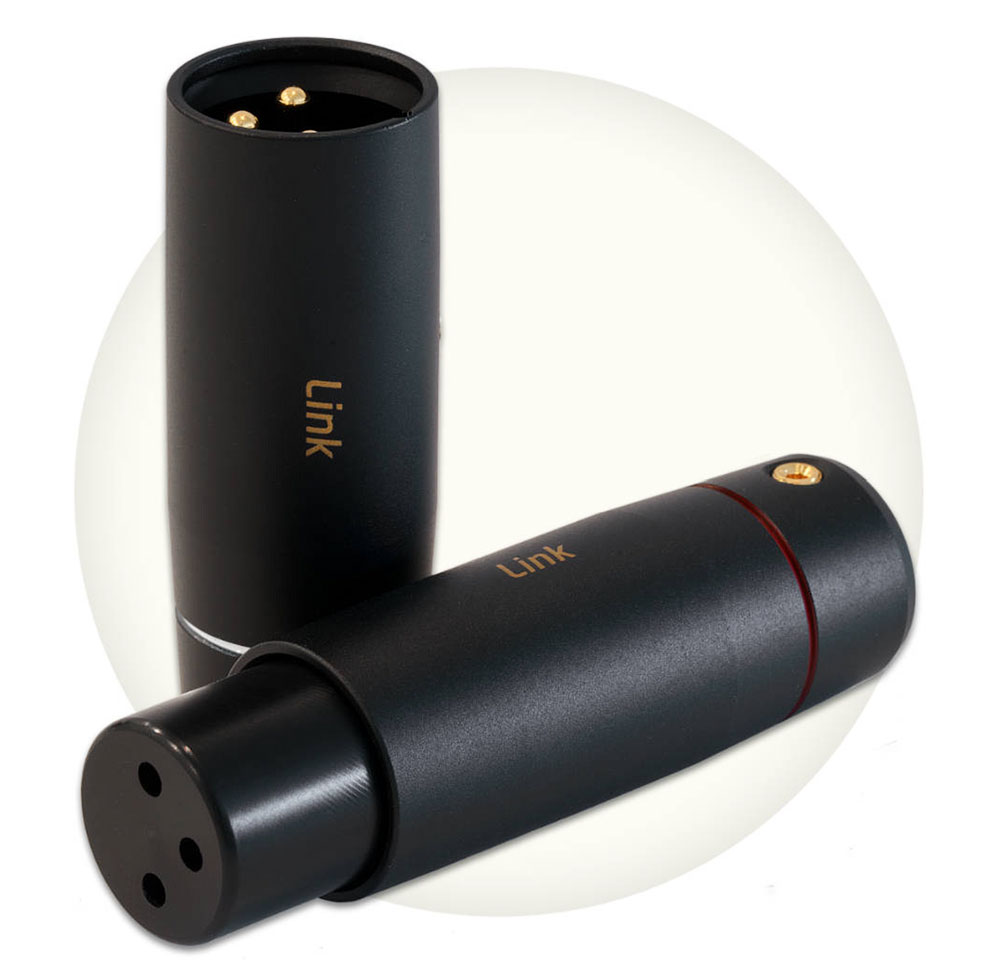

The new ETI Research Copper LINK XLR connectors were purpose-designed to incorporate cutting edge, premium grade audio technology, with gold plating directly on Tellurium Copper signal pins. The Copper Link XLR Connector’s conductors are made from Tellurium Copper, with direct gold plating. The housing of the unit is made from aluminium for excellent shielding effectiveness. The Copper Link XLR Connector also has twin strain relief screws for execellent strain relief. Like all ETI Research connectors, ETI plates the Gold directly to the Tellurium Copper with no Nickle intermediary layer. The ETI Research Kryo XLR Connector refinements include:

• Tellurium Copper signal pins for both male and female
• GOLD plated without any Nickel
• Polymer dielectric
• Aluminum housing
• Short housing to help the XLR cable not extend too much for better cable management
• Accommodates cables up to 9mm.
• Offered as a single connector (male OR female)

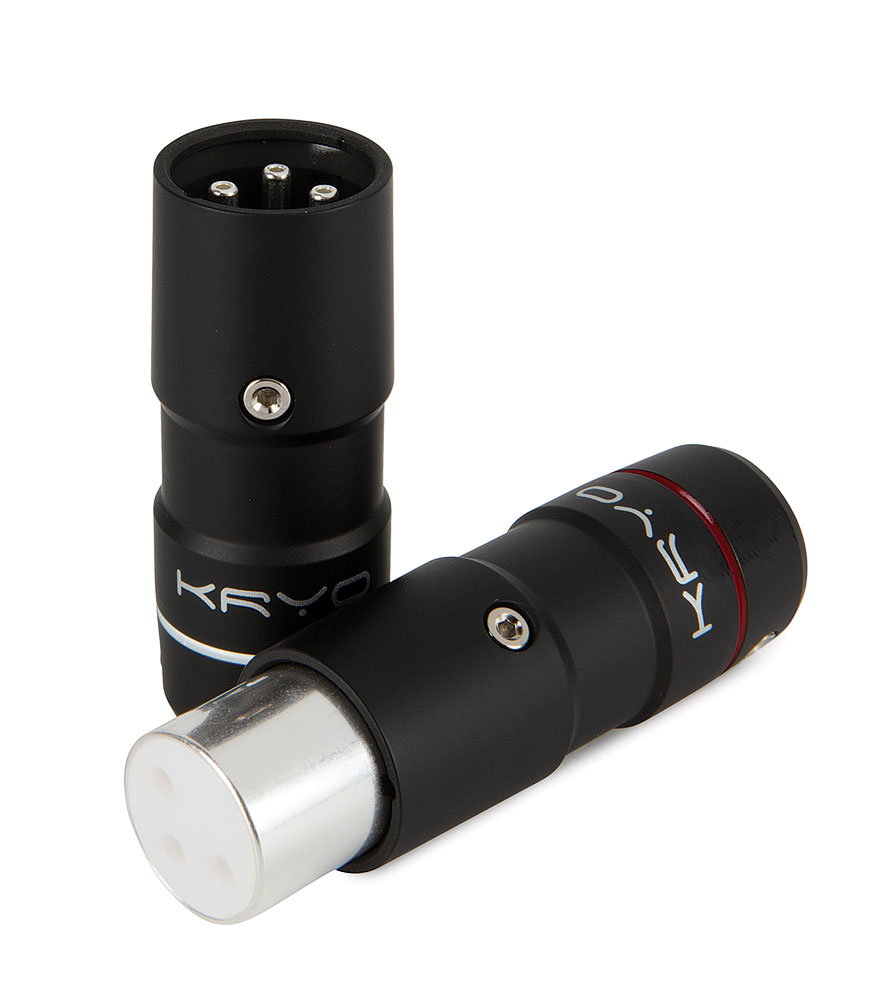

The new ETI Research KRYO XLR connector marks the first time ETI Research has produced this type of connector. It has taken time for CNC machining to progress to the point where the female connection can be machined to the thickness ETI Research knows is best. The ETI Research Kryo XLR Connector is made with Pure Copper, with direct silver plating. Refinements include:

• Copper machined connectors, both male and female
• Silver plated without any Nickel
• Teflon dielectric
• Brass housing for superior vibration damping and EMI/RF noise rejection.
• Short housing to help the XLR cable not extend too much for better cable management
• Accommodates cables up to 13mm, or 9mm with insert installed.
• Offered as a single connector (male OR female)

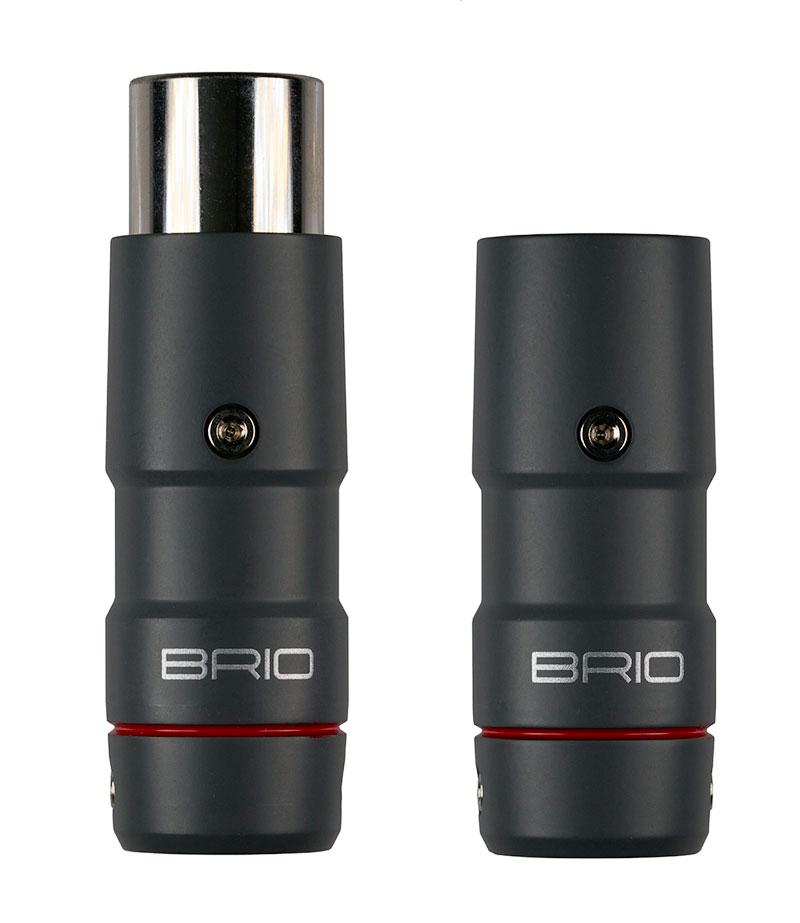

 The NEW ETI Research BRIO XLR connector is an advanced step for ETI as it has taken some time for CNC machining to get to the point where the female connection can be machined to the thickness ETI Research knows is optimum for the finest sound quality possible. The ETI Research Brio XLR connectors are made with Pure Copper, with direct Rhodium plating. Refinements include:

• Copper machined connectors (both male and female)
• RHODIUM plated without any Nickel
• Teflon Dielectric
• Brass housing for superior vibration damping and EMI/RF noise rejection.
• Short housing to help in the XLR cable not extending too much for better cable management
• Accommodates cables up to 13mm, or with insert installed 9mm.
• Offered as a single connector (male OR female)

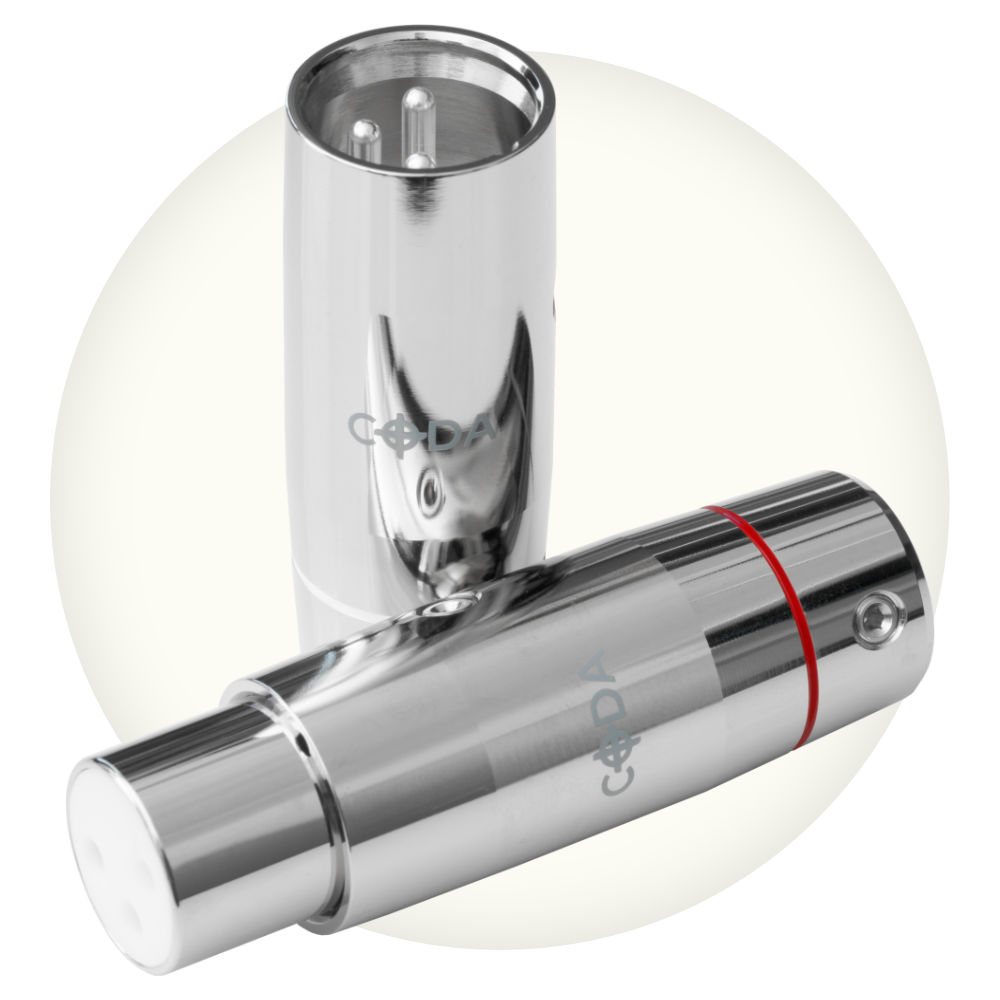

 The NEW ETI Research CODA XLR connector is an advanced step for ETI as it has taken some time for CNC machining to get to the point where the female connection can be machined to the thickness ETI Research knows is optimum for the finest sound quality possible. The ETI Research Brio XLR connectors are made with Pure Copper, with direct Rhodium plating. Refinements include:

• Copper machined connectors (both male and female)
• RHODIUM plated without any Nickel
• Teflon Dielectric
• Brass housing for superior vibration damping and EMI/RF noise rejection.
• Short housing to help in the XLR cable not extending too much for better cable management
• Accommodates cables up to 13mm, or with insert installed 9mm.
• Offered as a single connector (male OR female)

Coda XLR: The Pinnacle of High-Performance Connectors. The new Coda XLR, is a premium solid silver XLR connector with brass housing, designed for audiophiles seeking the ultimate in sound quality. Both the male and female pins are crafted from pure silver, ensuring uncompromising performance—these are not merely silver-plated, but piure, solid silver. For those who demand the most transparent connection.

A Word of Caution Regarding the Coda XLR

While the Coda XLR is the most conductive option on the market, it is also the most delicate. The challenge lies in the fact that male XLR pins from different manufacturers vary slightly in diameter. To accommodate this, we design our female XLR connectors with a cross-hatch—a small cut at the end—allowing slightly larger pins to be inserted without damaging the metal.

However, the Coda, made from silver, is particularly fragile. It can’t be too tight, or the metal will tear; if it’s too loose, it may not work well with certain male XLR connectors. This results in some users finding it a perfect fit, while others may feel it’s too loose. Although we’ve tested it with a variety of XLR brands and haven’t found any compatibility issues, the Coda female connector will never offer a very tight fit for some but still will work perfect.

It is best suited for those with significant experience. If you’re accustomed to brass connectors, I would recommend choosing the Kryo model, which features silver plating and offers more durability.

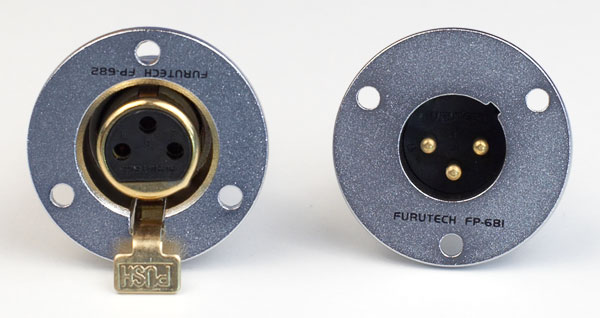

Furutech FP-681M and FP-682F chassis mount XLR sockets are considered significant upgrades over what is currently available on the market. These are made with high conductivity Phosphor bronze contacts that are either direct gold or Rhodium plated, and are insulated with Flouropolymer. The housings are a rugged, non-magnetic Zinc/Magnesium Alloy, and the entire asembly has undergone Furutech's proprietary cryogenic treatment and demagnetization process.

> Click here for panel cut-out size <

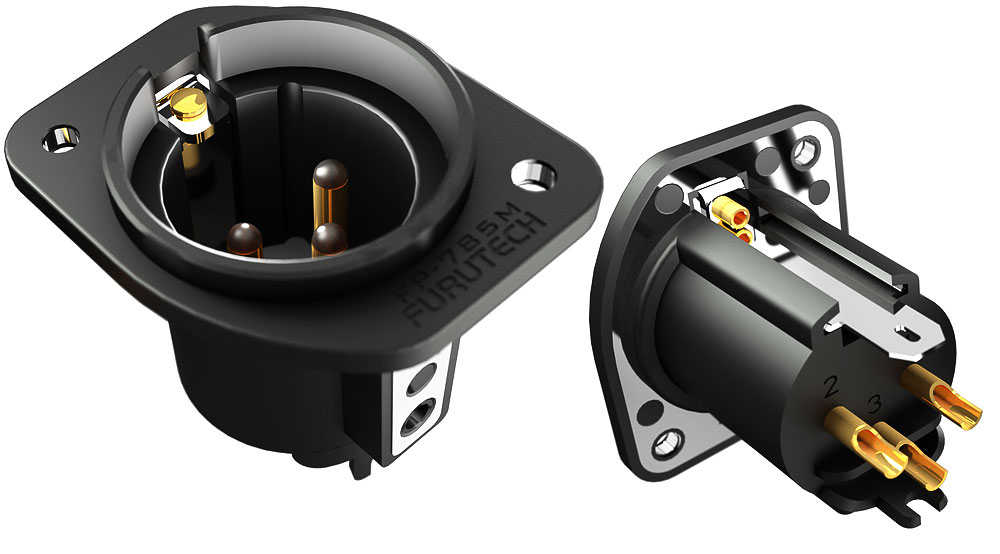

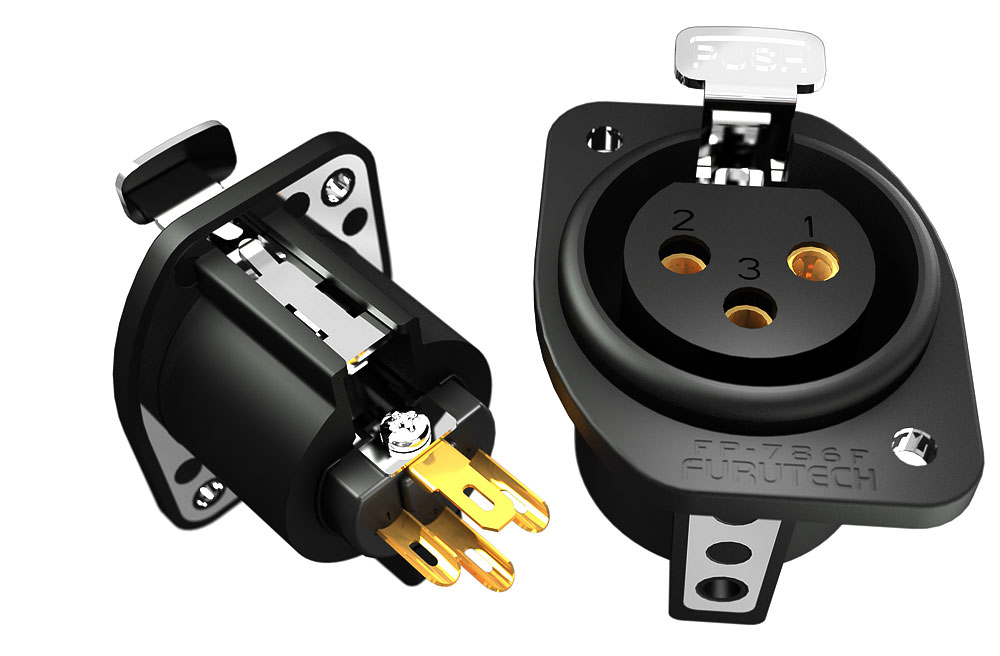

Furutech FT-785M and FT-786F are Furutech's newest designs for chassis mount XLR sockets. The FT-785M features (Alpha) pure COPPER conductors for minimal impedance, and a non-resonant nylon / fiberglass housing that incorporates Furutech�s Piezo Ceramic Damping Material. Unique to the FT-785M and FT-786F XLR sockets are special non-magnetic stainless steel plates, incorporated into the piezo compound using a process that is patent-pending to Furutech. If you want the absolute best QPR chassis mount XLR connectors on the market- look no further...

Features and Material
Main conductor: Rhodium plated (Alpha) pure copper (not brass or bronze)
Housing: Matte black nylon / fiberglass with Piezo Ceramic resin and SUS-plated internal parts
Connections: Soldered

> Click here for more info and dimensions for the FT-785M<

> Click here for more info and dimensions for the FT-786F<

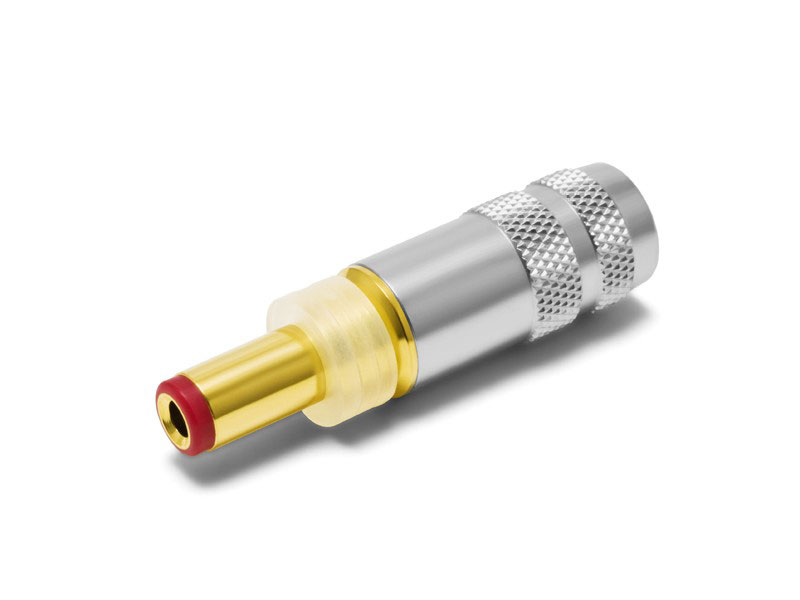

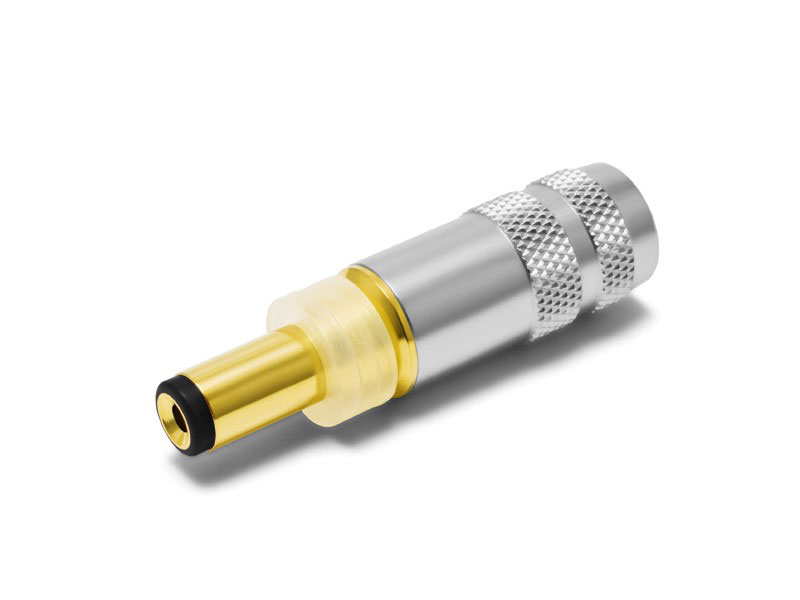

The Oyaide DC 2.1G (2.1 mm) and Oyaide DC 2.5G (2.5 mm), are the highest quality DC cable plugs for audiophile applications.

The Oyaide DC-2.1G and DC-2.5G are perfect for making DC umbilicals, and mate especially well with VH Audio's V-Quad Cu21, for arguably the best 18 AWG (aggregate) DC umbilical cable money can buy. Both the DC 2.1G and DC 2.5G are strongly resistant to vibration with usage of adjustable dampening/spacer rings located at the base of the conductive shaft.

> More details <

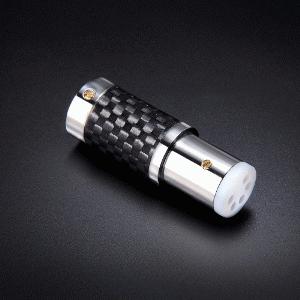

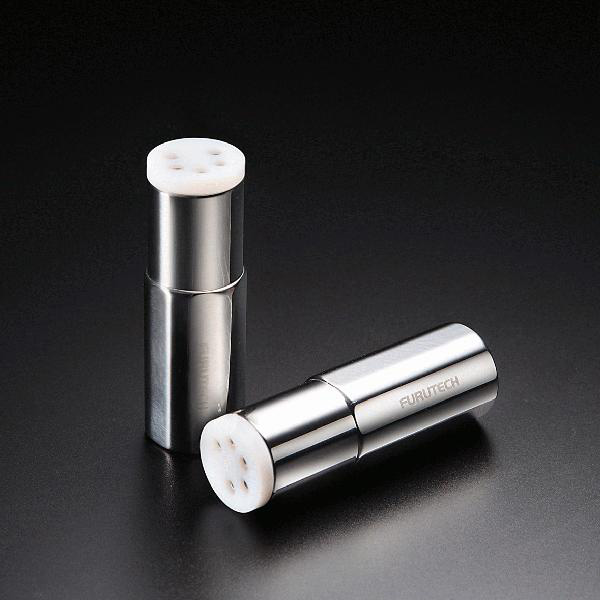

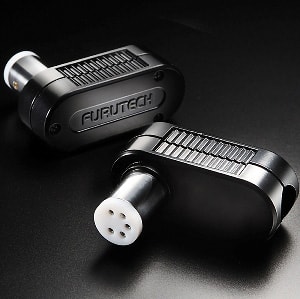

FINALLY! Audiophile grade DIN Phono connectors for you to terminate into your favorite cable or wire!!! The Furutech FP-DIN and FP-DIN L-90 phono connectors feature: Rhodium-plated (Alpha) phosphor bronze conductors, Flouropolymer insulated body, non-magnetic stainless steel housing, and soldered connections. Specified for cable diameters max. 10.0mm.

Dimensions:
FP-DIN - 14.0mm diameter x 54.0mm overall length
FP-DIN(L) - 45 (L) X 19(W) X 33.4(H) mm approx.

> Click here for more on the Furutech DIN connectors (.pdf) <

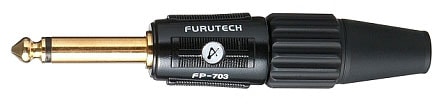

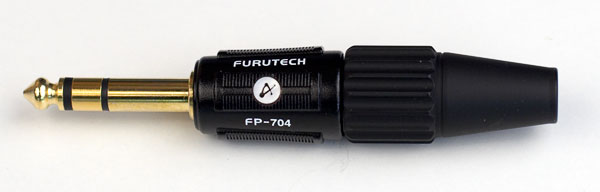

Furutech's FP-704G (Stereo) and FP-703G (Mono) 1/4" gold-plated phone plugs are Furutech's audiophile quality 1/4" phone plugs. Great for mic, guitar cables, and instrument cables, as well as headphone cables. Made with Furutech's (Alpha) Eutectic cast copper alloy center pin, a copper alloy rear housing with PBT and fiberglass insulation. Connections must be soldered. Zinc-Mg Alloy Casting body housing. Will accept cable diameters up to 8mm Dimensions. Housing: 17.8 diameter X 65.8mm. 97.3mm overall length.

Furutech has introduced a new line of headphone connectors!.

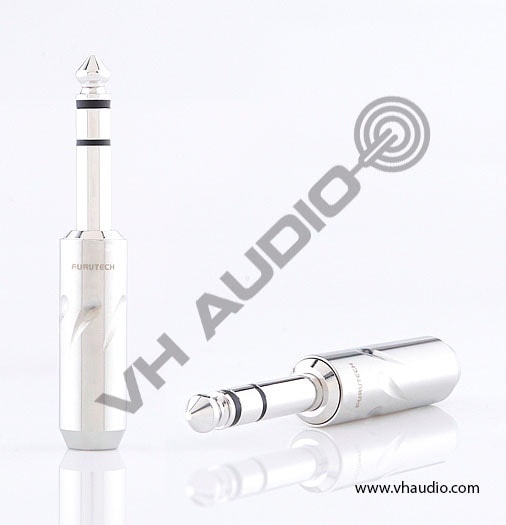

First, are the 1/4" (6.3 mm) stereo connectors: the Furutech FT-763 and CF-763. Both of these connectors use non-magnetic rhodium-plated (Alpha) Phosphor bronze conductor, with a fluoropolymer insulation. The outer housing of the FT-763 is non-magnetic stainless, whereas the CF-763 also employs a carbon fiber layer. Both connectors accomodate cables up to a maximum O.D. of 8 mm. Must be soldered.

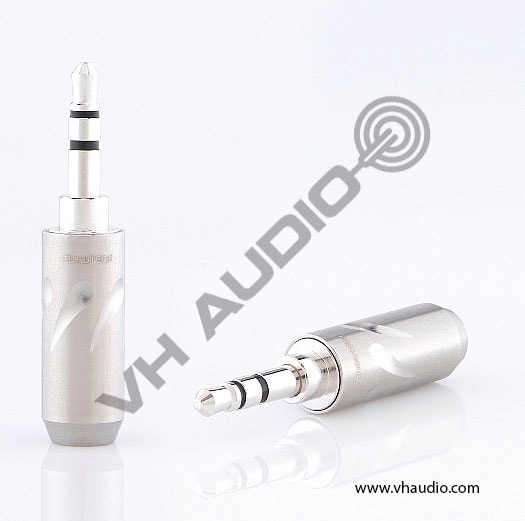

The FT-735 is a 3.5 mm (1/8") stereo connector that also uses non-magnetic rhodium-plated (Alpha) Phosphor bronze conductor, and fluoropolymer insulation. This connector will accomodate core insualtion cable diameter of up to 5.0 mm. Must be soldered.

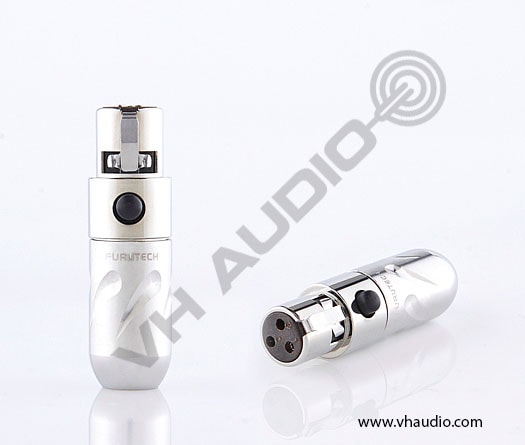

The Furutech FT-608mF mini female 3 pin XLR also uses Furutech's (Alpha) Phosphor bronze, but then uses polyphenylene sulfide insulation for better solderability with this smaller connector. Specified for core cable diamaters up to 5.0 mm. Must be soldered.

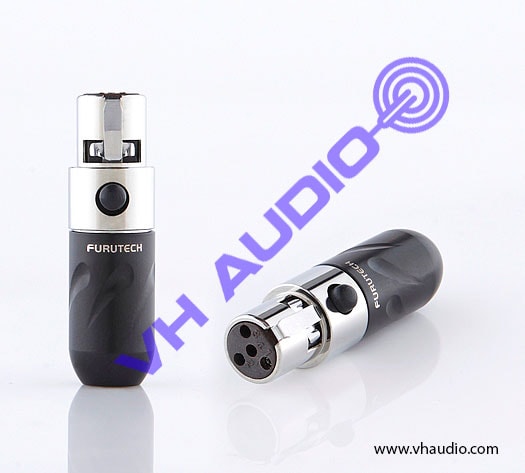

The Furutech FT-610mF mini female XLR is similar to the FT-608mF above but is the 4 pin version. It also uses Furutech's (Alpha) Phosphor bronze, as well as polyphenylene sulfide insulation for better solderability. Specified for core cable diamaters up to 5.0 mm. Must be soldered.

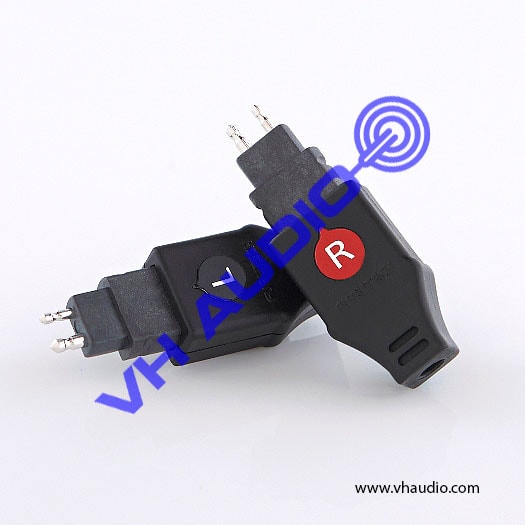

The FT-2PS headphone connectors now allow you to upgrade your connectors or DIY some cbales for Sennheiser HD-545, HD-565, HD-580, HD-600, HD-650, and HD-25SP headphones! As with Furutech's other headphone connectors, the FT-2PS have (Alpha) phosphor bronze conductors. The insualtion body is also injected with a liquid crystal polymer resin, and the housing is a matte black finished nylon/fiberglass with piezo ceramic resin. Specified for cable core diameters ut to 3.5 mm.

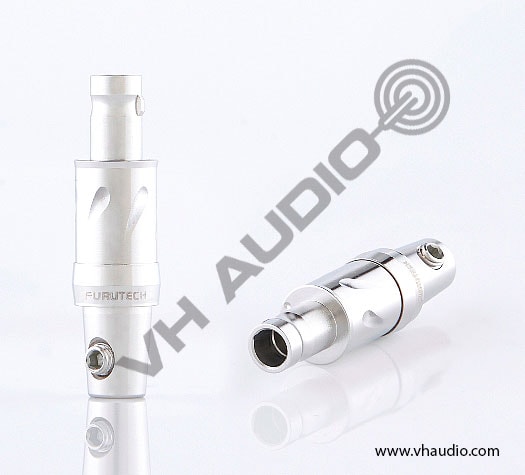

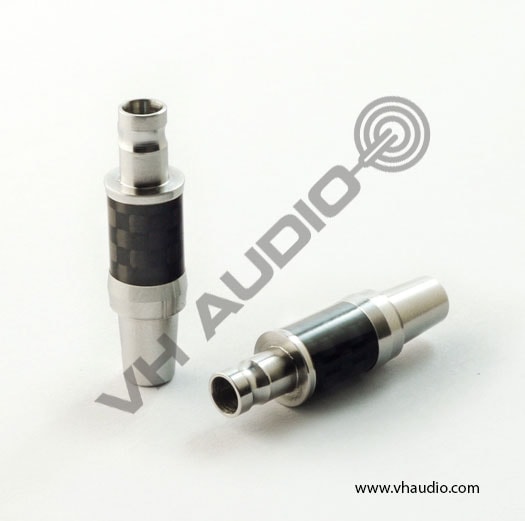

Lastly, Furutech has made some terrific connectors that fit the Sennheiser HD-800 headphones. First, the FT-H800 again uses the (Alpha) phosphor bronze conductors, but also insulates these connectors with a nylon/fiberglass resin. The main body and end ring is non-magnetic stainless. The CF-H800 model is identical construction, with a carbon fiber layer on the body. Both of these H800 connectors will accomodate cable core diameters up to 3.8 mm.

For complete specs on each connector, please click on the appropriate model numbers below:

FT-763

CF-763

FT-735

FT-608mF

FT-610mF

FT-2PS

FT-H800

CF-H800

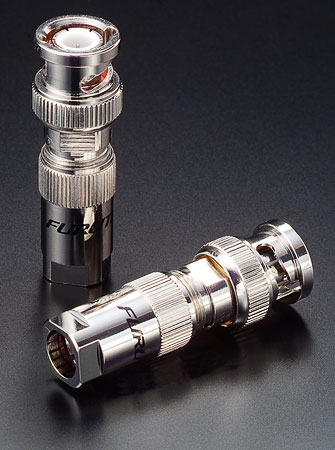

Furutech's FP-3-117 BNC plug uses a Flouropolymer dielectric, non-magnetic materials, and employs a high conductivity, Rhodium plated bronze central pin. The body is also Rhodium plated non-magnetic bronze. Maximum cable diameter/8.0mm and characteristic impedence is 75 Ohms +/- 5%.
